Muffle Furnace

INDUSTRIAL HEATERS

LOHAGAN designs and manufactures  a range of heaters for laboratory and industrial applications. Whether you require natural or fan assisted convection or an atmosphere controlled high temperature oven our solutions meet BS EN 61010-2-010:2003 standards and have outstanding temperature uniformity. The range of optional extras to meet your specific requirements is almost limitless and includes over-temperature protection, specialist shelves and runners, digital timers and the very latest advanced controllers and The design is characterized by robust construction and lasting materials, making the industrial oven range ideal for heavy duty applications Typical applications of our industrial ovens including drying, baking, or curing components. Further to these applications all of the industrial ovens that we offer can be highly customized, and are therefore able to completely fulfil the demanding requirements of many different industries.

Drying/Curing ovens
Walk in chamber ovens
Trolley type ovens
Conveyor ovens
Infrared ovens
Laboratory ovens

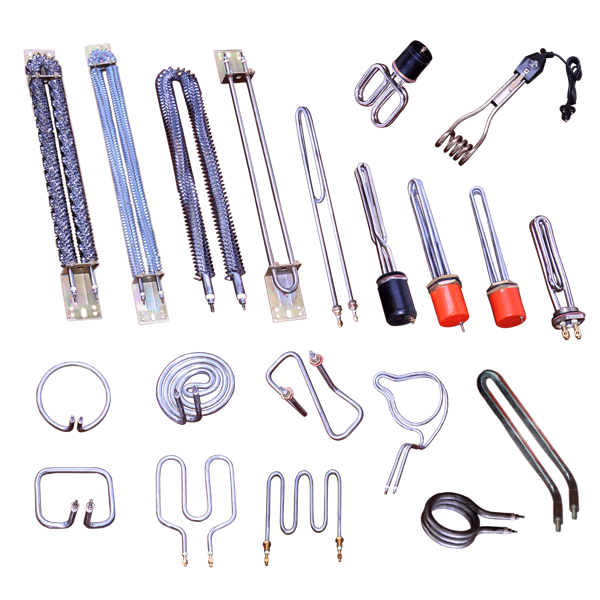

Tubular Heating Elements are used for practically the entire range of electric resistance heating applications. Tubular Heaters are the most versatile and widely used source of electric heat for industrial, commercial and scientific applications. They can be designed in a wide range of electrical ratings, diameters, lengths, terminations, and sheath materials. Important and useful characteristics of tubular heaters are that they can be formed into virtually any shape, brazed or welded to any metal surface, and cast into metals. for more details contact us.LOHAGAN develops and manufactures  direct immersion tubular heater for oil or water heating applications having Brass, steel, or stainless steel screw plugs in 1″, 11â??„4″, 2″, and 21â??„2″ BSP threading sizes. Simple to install & maintenance these heaters can be designed in varied kW ratings as per your application .

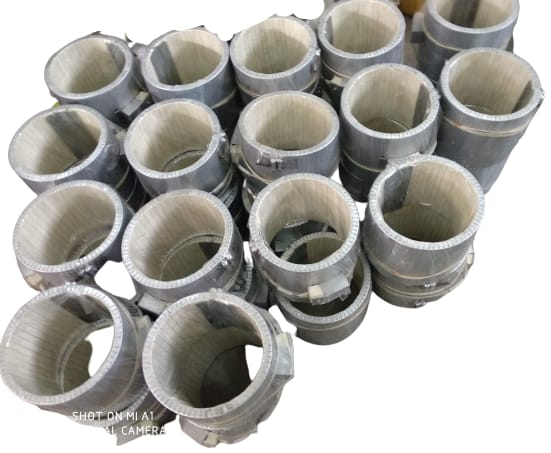

Ceramic bands provide long life and lower energy costs. They provide efficient heat transfer without being affected by surface irregularities or loose fit. They can be manufactured in as little as one day. Ceramic bands function well in high temperature applications LOHAGAN Equipments develops band hetaers as per your requirment

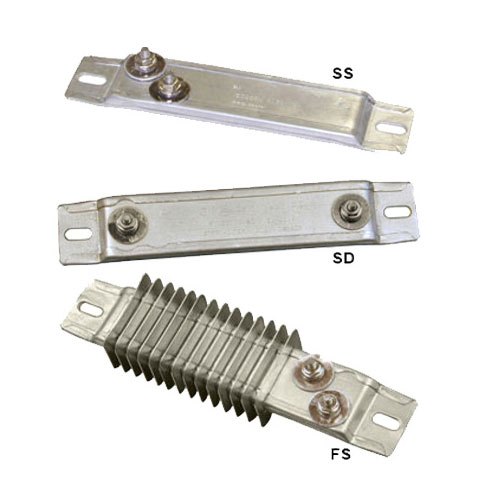

LOHAGAN develops Strip Heaters (Mica / Refractory Insulated) which are made from Kanthal make wire element supported on Mica Sheet or in Fluted Refractory, which is sheathed in rust resisting steel. End-tab holes are provided for mounting. Applications: Provides black heat in ovens, Industrial and commercial heating chambers converters & panel boards.

Finned Strip Heaters are basically Heavy Duty Refractory insulated strip heaters with locked on fins for fast transfer of heat to air. Application: In forced air ducts, blowers units, ovens, dryers etc

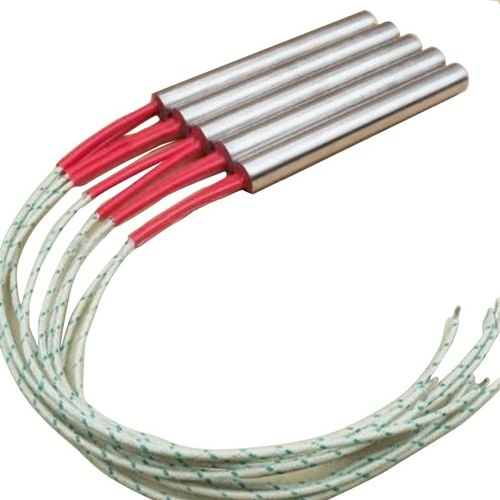

LOHAGAN Equipments  manufactures & Supplies a wide range of cartridge heating units for a variety of applications. This size, sheath, leads, terminals, wattage and voltage can be adapted to your heating requirements. we can provide you Low / Medium / High watt density cartridge heating units manufactured to your specifications to accommodate your application.

These heaters can also be supplied along with built in K or J type Thermocouple. The HWD cartridge heater accelerates the transfer of heat from the resistance wire to the sheath. This is accomplished by relocating the wire so that it is closer to the sheath; and swaging the outside diameter of the heater, thereby compressing the magnesium oxide filler so that it becomes an improved conductor of heat from the wire while maintaining its dielectric properties.

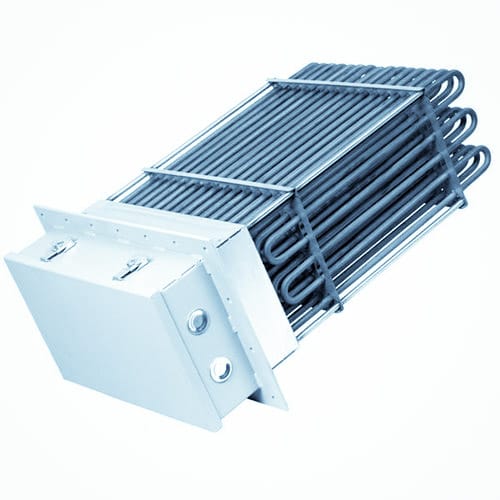

Industrial duct heater  are equipment intended for heating any type of duct where a fast and efficient heating system is required.LOHAGAN Equipments designs it as per your requirment.

LOHAGAN manufactures various types of drum heaters such as clamp on heaters, flexible pad heaters, Semi circular heaters for applications wherein barrel or drum is kept in horizontal position and drum heater covering entire drum.

At LOHAGAN Equipments  we have an wide range of Electrical Flexible Heating jakets that can be used for varied applications. These heating pads can be manufactured in fiber glass, Silicon cloth, in cord form. flexible heating pads  can be easily wound on pipes, cylinders, tanks etc. can be used where local heating is required. Can be manufactured in custom sizes.
Flexible Heating Tape fabricated in Silicon Rubber cloth & Fiber glass yarn combo provides Superior Quality and Long life.
